Board window: View – Notation (Ctrl-Alt-N)



Header



In this window you see the game notation with any variations or commentary it may contain.

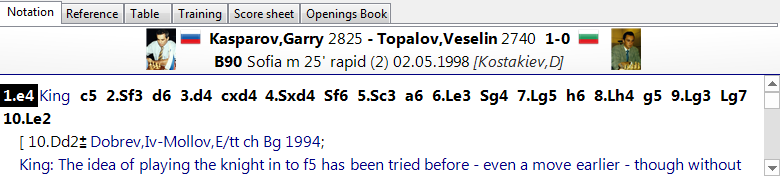

Headers are displayed in a more flexible manner in ChessBase 14.

They are now made up of three lines and allow the possibility of displaying larger photos from the player encyclopaedia especially when using higher defintion monitors.



There is now much more information in the top line of a game in the board window. Next to the player name a flag and a photo from the game's year are displayed, if available.



In the board window there is a toolbar that contains the most important functions for editing the notation.These buttons allow you to easily enter comments or change the structure of the notation.  The program first checks to see if there is any text in the game notation. It first checks the “All” section before going on to check all other languages for comments. If no text is found then the default program language is used as before.

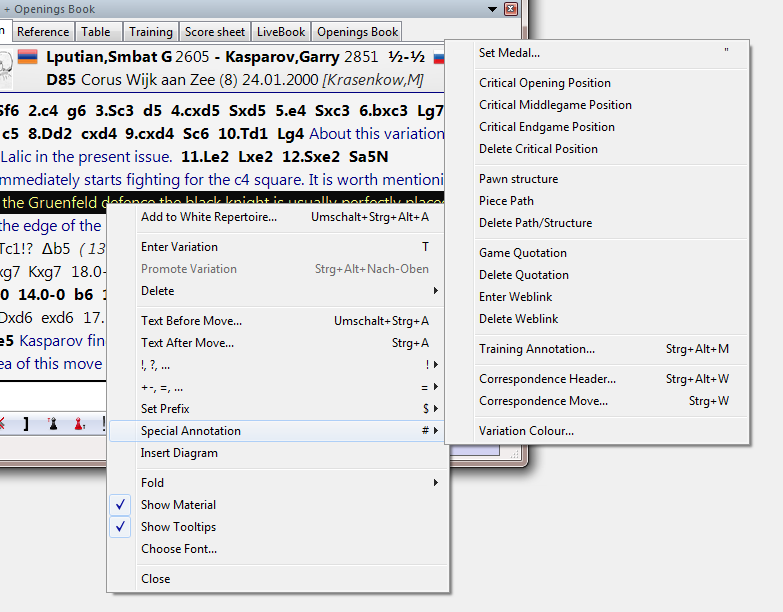

Right-clicking the window opens a menu in which you will find all functions relevant to the game notation.



Example Rightclick



DO-IT    You can fold or unfold variations, enter new ones, and promote or delete them. You can enter commentary or mark positions for diagram printing. "Material" displays the material balance at the bottom of the notation window.


DO-IT    You can also set the font type and size of the notation.


DO-IT    Clicking any move in the notation window causes the board to jump to that position. A double-click opens the editor to enter text commentary.



Tabs



At the top of the notation window you find the following tabs:



    Table notation

    Training notation

    Score Sheet

    Openings Book

    Reference

    LiveBook
